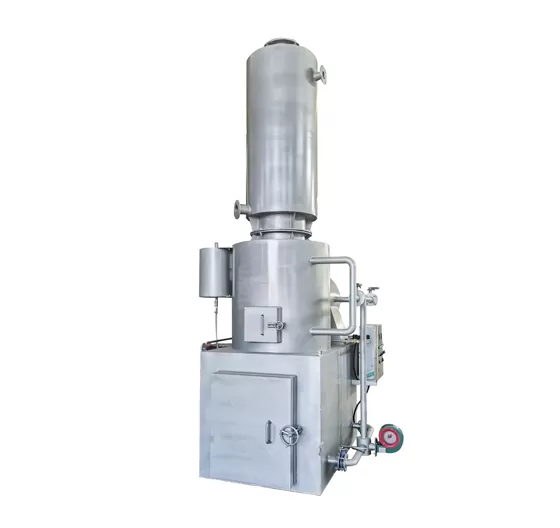

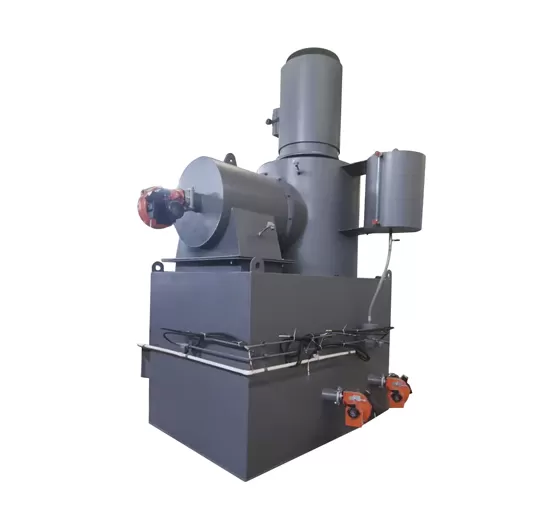

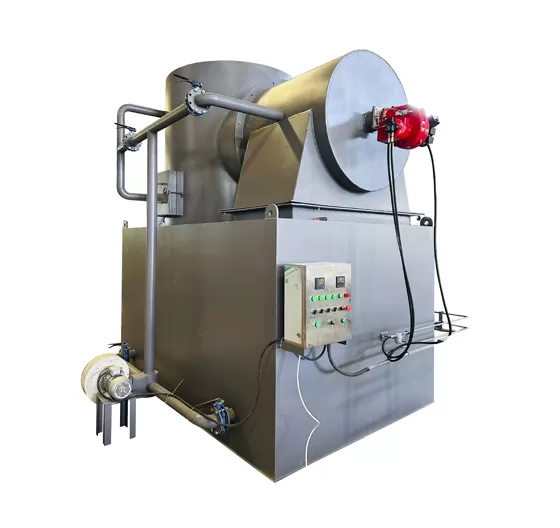

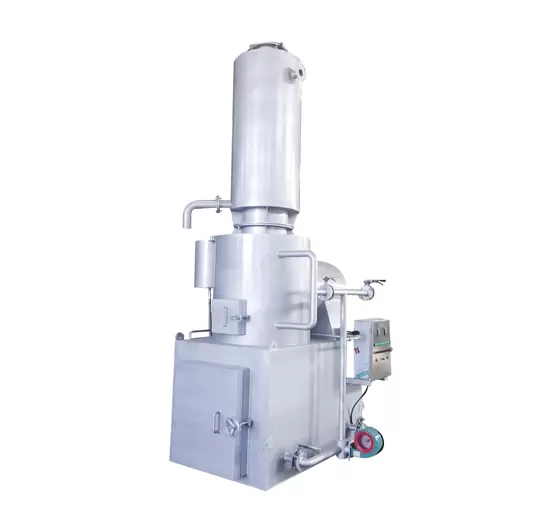

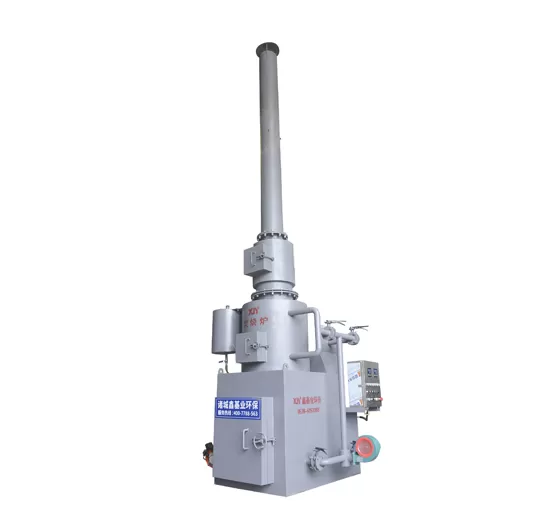

Garbage Incinerator

XJY series waste incinerator is Zhucheng Xinjiye Environmental Protection Equipment Co., Ltd. introduced the world's advanced incinerator technology, and organized technical experts to research and develop incineration treatment equipment with independent intellectual property rights. The equipment has the characteristics of fully enclosed, small size, high incineration efficiency, reasonable process, leading technology, and high degree of harmfulness. It is the ideal garbage disposal equipment for all kinds of hospitals, hotels, stations, large commercial institutions, enterprises and public institutions.

Contact XJY

Specifications of Garbage Incinerator



model item

XJY-50

XJY-100

XJY-200

Incineration capacity

30-50 kg/h

50-100 kg/h

150-200 kg/h

size (L×B×H)(m)

1.45×0.9×2.75

1.8×1.15×3

2×1.4×3.5

Input port size(mm)

480×600

620×800

760×960

Chimney size(mm)

Outside diameter ø280

ø Outside diameter 280

Outside diameter ø300

The power Of the fan

0.25kw

0.25kw

0.55kw

Combustion burner

Power 0.15kw

Fuel consumption

4-6kg/h

Power 0.15kw

4-10kg/h

Power 0.15kw

4-10kg/h

Reburning burner


Power 0.15kw

Fuel consumption

4-6kg/h

0.15kw

4-10kg/h

0.37kw

7-10kg/h

Voltage


380V or 220V

380V or 220V

380V or 220V

Weight(kg)

3000

5000

7000


model item

XJY-300

XJY-400

XJY-500

Incineration capacity

200-300 kg/h


300-400 kg/h


400-500 kg/h


size (L×B×H)(m)

2.2×1.4×3.8

3×2×4.8

3.3×2.3×4.8

Input port size(mm)

900×1100

1080×1280

1400×1300

Chimney size(mm)

Outside diameter

ø400

Outside diameter

460

Outside diameter

ø480

The power of the fan

0.75kw

0.75kw

1.1kw

Combustion burner

Power 0.15kw

Fuel consumption

7-10kg/h

0.37kw

7-14kg/h

0.37kw

7-14kg/h

Reburning burner

Power 0.37kw

Fuel consumption

10-20kg/h

0.37kw

15-26kg/h

0.37kw

15-26kg/h

Voltage

380V or 220V

380V or 220V

380V or 220V

Weight(kg)

8300

13000

20000

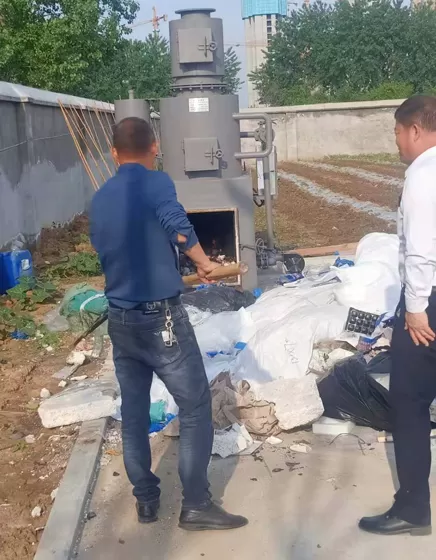

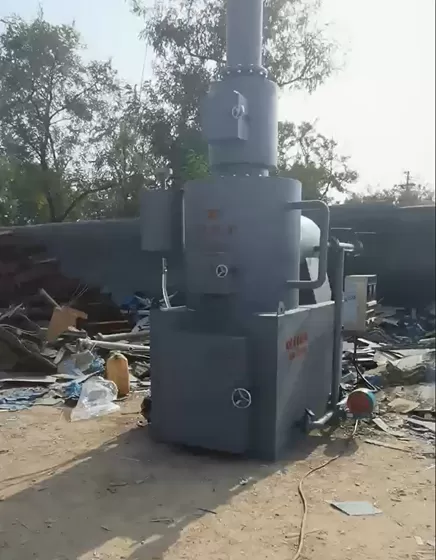

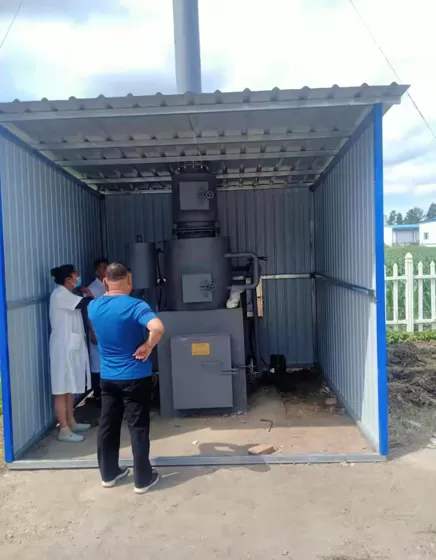

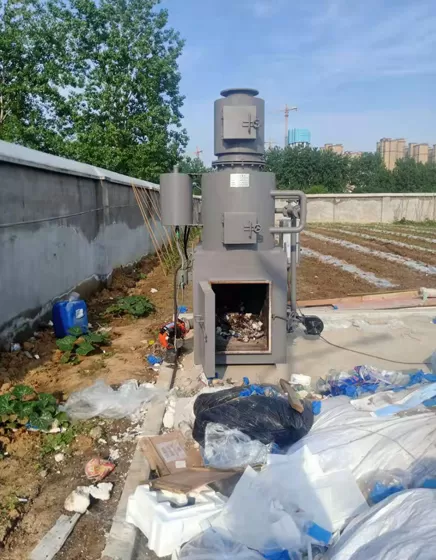

Applications of Garbage Incinerator

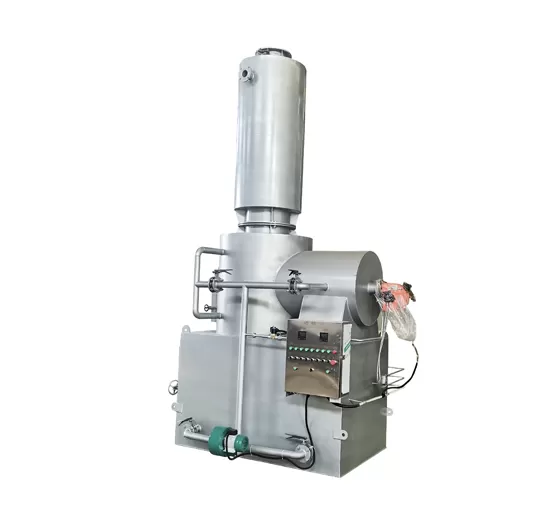

Comparing Incineration with Other Waste Management Methods

Comparing Incineration with Other Waste Management Methods

Like industrial waste and other plastic foam products, the components of these waste solid waste contain relatively high carbon content, through direct ignition and incineration to deal with it, these waste solid waste in the burning process will produce a lot of smoke, a lot of black smoke, as well as pungent smell, and a lot of black filamentous floc floating in the air, it is more troublesome to deal with. If entrusted to a third party for processing, it will incur an additional hefty cost every year. Xjy series incinerator has the advantages of high incineration efficiency, good incineration effect, thorough incineration and high degree of harmfulness compared with ordinary incineration methods. Xjy series incinerators have the advantage of entrustment of a third party treatment, which is cheaper to use, and can be incinerated at any time, and has low requirements for the composition of waste materials and low calorific value.

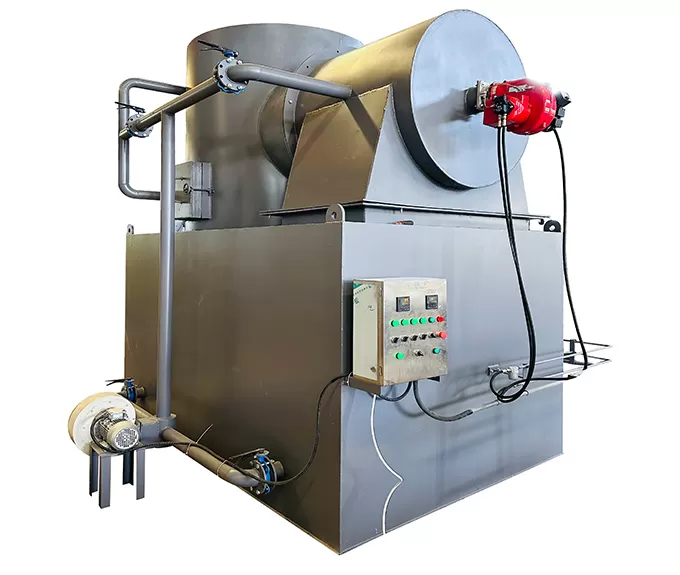

Garbage Incinerator Main features

Garbage Incinerator Main features

1. the use of gasification incineration technology, suitable for the incineration of syringes, drop containers and other living equipment as well as all kinds of paper waste, bandages, absorptive cotton, a variety of domestic sewage and hospitals, living institutions discharged a variety of waste.

2. the gasification incineration method, the waste generated every day can be incinerated once.

3. the use of gasification incineration, mixed incineration, burnout treatment and other technologies, so that the exhaust smoke, soot content is lower than the national emission standards.

4. the use of fully closed operation, suitable for the treatment of infectious domestic waste, to avoid secondary pollution.

5. small size, small footprint.

6. the series of incinerators divided into fuel and gas two, users can use different types according to needs.


Waste Incinerator Operation Safety Measures
Waste Incinerator Operation Safety Measures

1. the power supply can not be immediately cut off after the automatic start and stop of the furnace. Due to the high temperature of the furnace at that time, the power failure will cause the fan to stop, and the burner can not be cooled, and the high temperature will cause the nozzle of the burner and the high pressure ignition line to be damaged.

2. in the event of an emergency (deflagration in the furnace, etc.), the emergency shutdown switch should be immediately pressed to implement the emergency shutdown.

3. whether the normal combustion is completed or the emergency furnace stop is not allowed to turn off the power immediately, that is, stop the burner fan rotation, to prevent the burner from burning due to high temperature.

4. when burning garbage, it is forbidden to open the door and open the furnace door when the combustion is not finished, so as to avoid causing open fire leakage and scalding personnel and high temperature causing the burner above the furnace door to be burned, and the smoke causing air pollution.

5. each time the ash cleaning should be 8 hours after the completion of incineration, the temperature of the furnace ash should be lowered to avoid excessive temperature caused by personnel burns.
